[Thursday] AK Breadboard

[Michael Thompson]

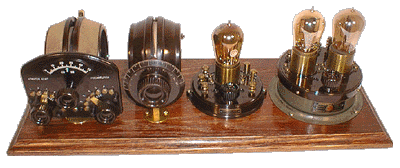

Yes, a little different than the ones that we have.

[image: image.png]

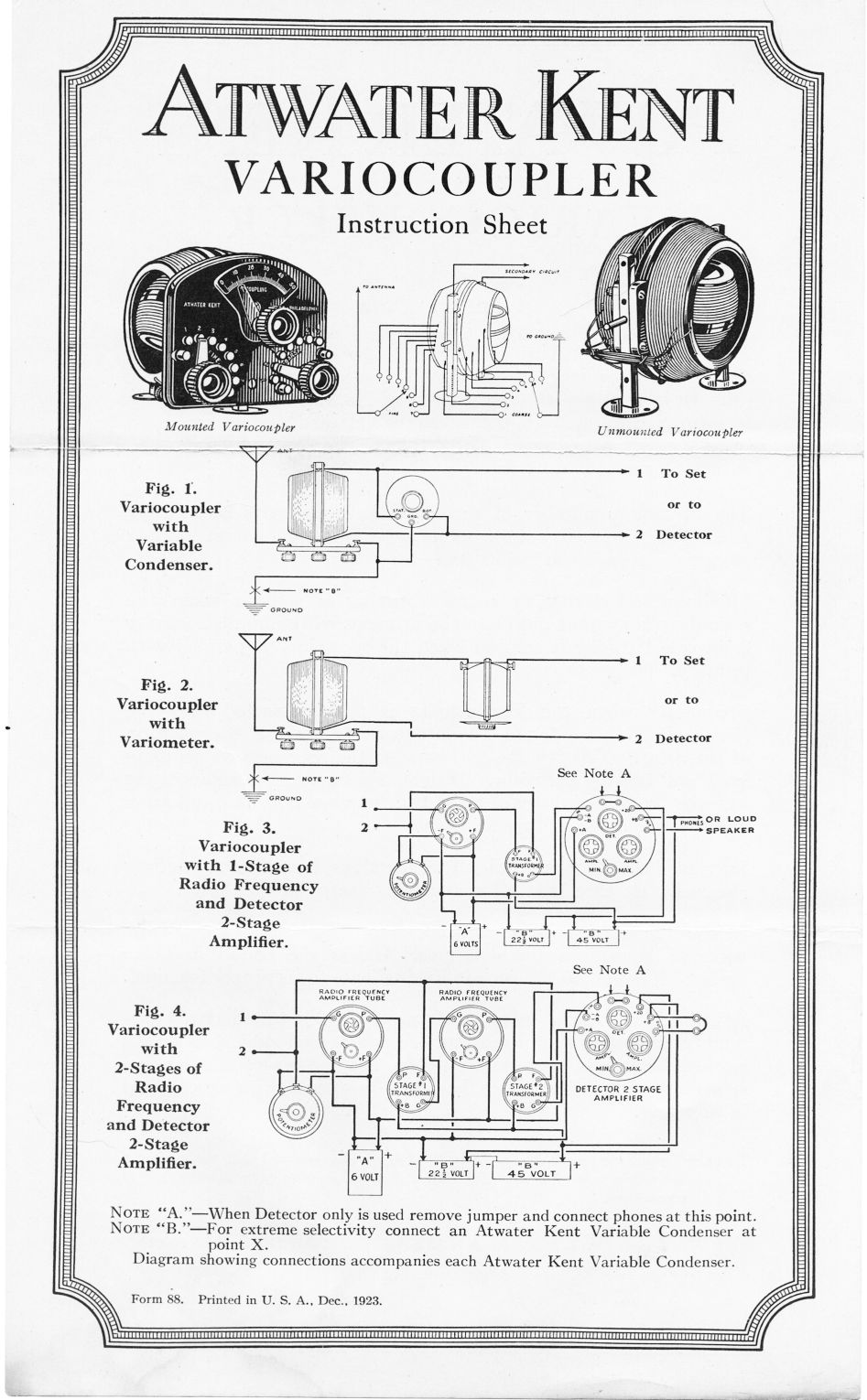

It is a model 3731 Variocoupler used on an AK Model-3975 radio.
[image: image.png]

On Tue, Jun 6, 2023 at 5:07 PM <rhodeislandradio at mail.com> wrote:

> I’m talking about the one on the far left.
>
> Len
>
> Sent using the mobile mail app
>
> On 6/6/23 at 5:05 PM, Michael Thompson wrote:
>
> From: "Michael Thompson" <michael.99.thompson at gmail.com>
> Date: June 6, 2023
> To: rhodeislandradio at mail.com
> Cc: "Thursday at newsm.org" <Thursday at newsm.org>
> Subject: Re: [Thursday] AK Breadboard
> That is an AK Type-TA island. One tube is the detector and one tube is an
> audio amplifier.
>
> [image: image.png]
>
> On Tue, Jun 6, 2023 at 4:53 PM Len Arzoomanian via Thursday <
> thursday at newsm.org> wrote:
>
>> Here is an AK breadboard with an island I have not seen before.
>>
>> Mike?
>>
>> Len
>>
>> Sent using the mobile mail
>> app_______________________________________________
>> Thursday mailing list
>> Thursday at newsm.org
>> http://newsm.org/mailman/listinfo/thursday_newsm.org
>>
>
>
> --
> Michael Thompson
>


--
Michael Thompson
